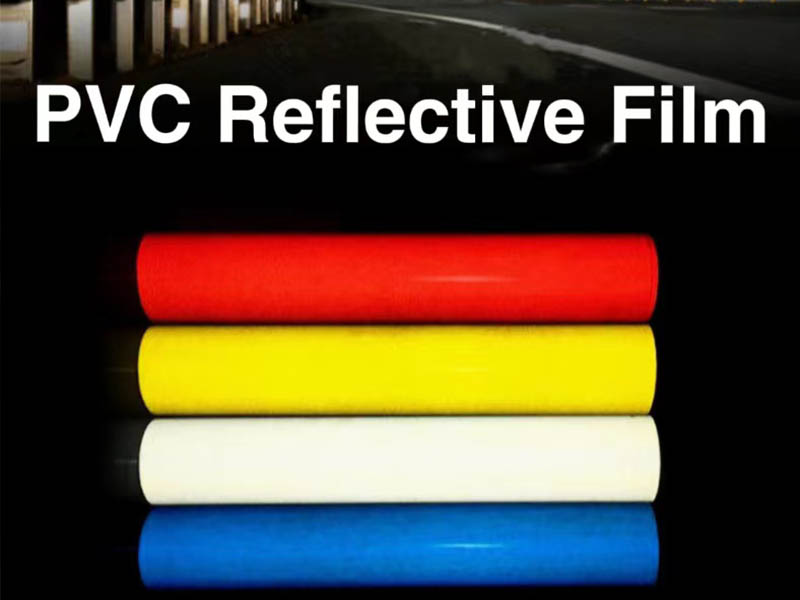

PVC Reflective Film

PVC Reflective Film is also called Reflective Sheeting, Reflective vinyl.It has these grade: engineering grade , commercial Grade, high intensity.

With good reflective performance and wide-angel performance, pvc reflective films are widely used in traffic sign, advertising and so on. It has good weather resistance, performs well in severe weather.

Product overview

Retro-reflective technology

PVC reflective film is a specialized retro-reflective material manufactured with microscopic glass beads or prismatic optical elements embedded in a PVC matrix. These optical structures redirect light back to its source, creating high-intensity visibility in low-light conditions. The film is engineered for traffic signage, vehicle markings, safety apparel, and architectural applications where nighttime visibility is critical. Available in engineering-grade, high-intensity, and diamond-grade reflectivity levels, the material offers durability ratings from 7 to 12 years depending on the grade. The PVC base provides flexibility for application on curved surfaces while maintaining optical performance.

Core advantages

Retro-reflection

Returns light to its source. High-intensity visibility up to 300 meters.

Weather resistance

UV stabilized. Withstands rain, snow, and temperature extremes.

Adhesive system

Pressure-sensitive acrylic. Bonds to metal, plastic, glass.

Cutting flexibility

Die-cut, plotter-cut compatible. Clean edges without fraying.

Optical layer

Glass bead technology

Engineering grade uses precision glass beads with reflectivity of 50-80 cd/lx/m² for general signage applications.

Optical layer

Prismatic reflector

Diamond grade achieves 500-800 cd/lx/m² using microprismatic technology for critical safety applications.

Technical specifications

Reflectivity50-800 cd/lx/m²

Thickness0.15 – 0.30 mm

Width1.22 / 1.37 / 1.52 m

AdhesiveAcrylic permanent

Service life7 – 12 years

Fire ratingB1 (GB 8624)

Temperature-20°C to +60°C

Application scenarios

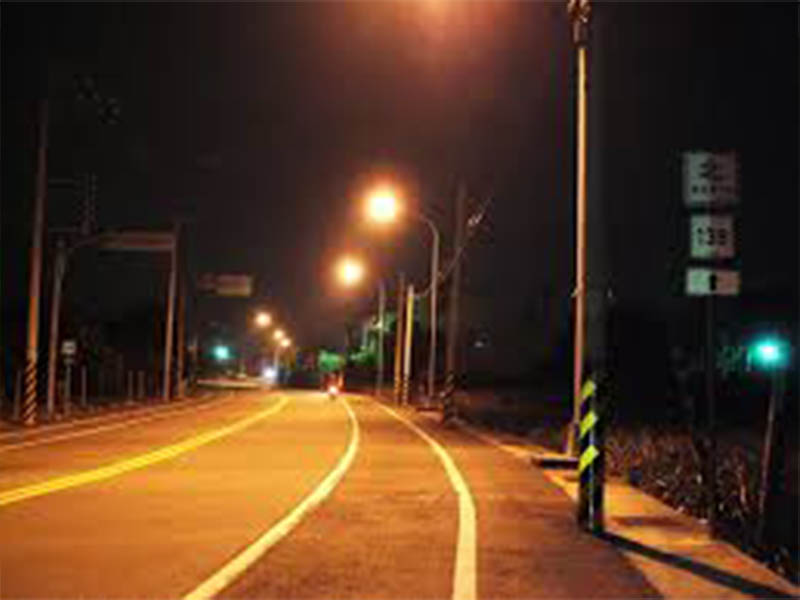

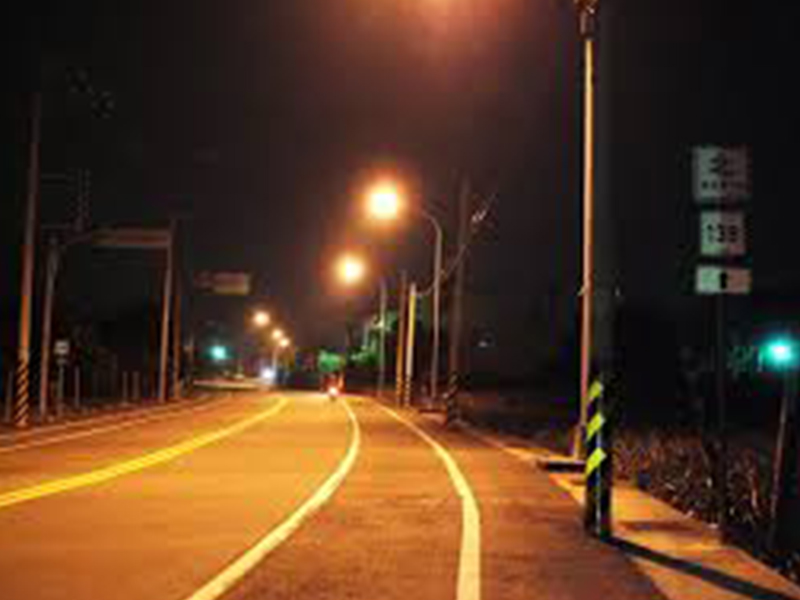

TrafficRoad signs, hazard markers, guide posts

VehicleEmergency markings, fleet graphics

SafetyPPE, vests, barrier tape

ArchitecturalBuilding signs, wayfinding

IndustrialEquipment labels, hazard zones

ⓘ

Application guidelines

Apply on clean, dry surfaces above 10°C. Use firm pressure with a roller to ensure full adhesive contact. Avoid stretching during application. Allow 48 hours for adhesive bond to reach maximum strength.

Frequently asked questions

What is the difference between engineering grade and diamond grade?

Engineering grade (50-80 cd/lx/m²) is suitable for general signage where viewing distance is under 50 meters. Diamond grade (500-800 cd/lx/m²) provides maximum visibility for highway signs and critical safety applications with extended viewing distances.

Can this film be printed on?

Yes. Screen printing with UV-curable inks is recommended. Digital printing requires a printable topcoat version. Solvent-based inks may affect the reflective layer.

How long does the reflective effect last outdoors?

Depending on grade: engineering grade 7 years, high-intensity grade 10 years, diamond grade 12 years. UV stabilizers prevent yellowing and maintain reflectivity throughout service life.

Can it be applied to curved surfaces?

Yes. The PVC film is flexible and conforms to mild curves without cracking. Minimum bend radius is 3 times the material thickness. For complex curves, use heat application to conform the film.

Standard

________________________________________

Comply with ROHS, REACH, the U.S. CPSIA, and other environmental regulations if required.

Audience

________________________________________

Traffic signs, highway signs, the traffic road cones, traffic guardrails, advertising signs, advertising billboard, and signs in working area or construction site, and truck/trailer Signs, vehicle number plate ect.

Specification

________________________________________

Production according to customer's requirement.
