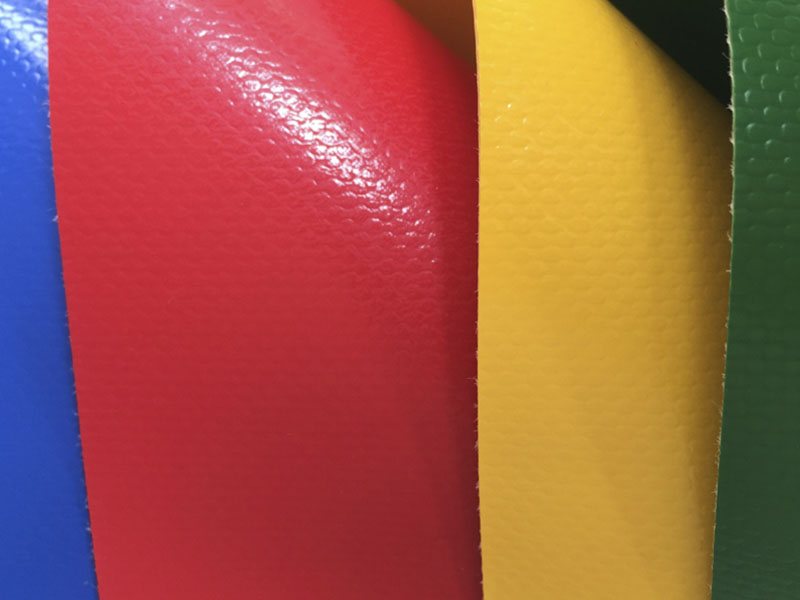

1050GSM 1000D30X32 Colorful Membrane Structure PVC Coated Polyester Fabric

With PVC material advantages mentioned above, PVC fabric came into being.99.9％ polyester base fabric as reinforce of PVC material, making the fabric be of high performance of physical property to apply many fields in our industry and daily life.

1050GSM 1000D 30X30 is the most common item in membrane structure industry. Colorful options make membrane structure with diversity instead of white membrane structure.

Technical Data Sheet

Properties	Units	Test method	Average value
Base Fabric Yarn	Denier		1000 x 1000D
Base Fabric Density	Thread/inch	FZ/T01003	30x32
Finished Fabric Weight	Gram/m2	FZ/T01003	1050±3%
Thickness	mm	FZ/T01003	0.83±3%
Tensile strength at MD	N/5cm	GB/T1040	4500
Tensile strength at CD	N/5cm	GB/T1040	4200
Tearing Strength at MD	N/5cm	GB/T16578	600
Tearing Strength at CD	N/5cm	GB/T16578	580
Peeling Strength	N/5cm	GB/T3917	100
Temperature range	℃		-50 ~ +70
Flame retardant			B1,B2,M1,M2, NFPA-701,C 19
Surface treatment			Acrylic, PVDF

PVC material is flame retardant (flame retardant value above 40), high chemical resistance (resistant to concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid and 20% sodium hydroxide), mechanical strength. And the advantages of good electrical insulation. With some chemical additives, making PVC material be of anti-UV, anti-mildew, anti-frost, anti-statistic, anti-bacterial, higher level frame retardant performance. And for health consideration, we can also make it meet RoHS, REACH, EN71-3 standards.

1050GSM 1000D30X32 Colorful Membrane Structure PVC Coated Polyester Fabric is a high-performance polyester fabric that combines the strength of polyester fiber with the durability of PVC coating. The fabric has a high density of 1050GSM (grams per square meter), indicating that it is thick and durable, suitable for a variety of occasions that require strong physical properties and chemical stability. 1000D30X32 describes the yarn specifications and weave of the fabric, meaning that the fabric is woven from high-strength, fine yarns, further enhancing its durability and stability.

Specific parameters

Weight: 1050GSM (grams per square meter), showing its high density and thick texture.
Yarn specifications: 1000D30X32, indicating the high-strength yarn used and its weaving method, ensuring the strength and stability of the fabric.
Color: Colorful membrane structure, a variety of colors can be customized according to customer needs to meet the aesthetic needs of different projects.
Coating: PVC coating, which enhances the waterproof, anti-fouling, UV resistance and chemical stability of the fabric.
Weaving method: It may include plain weave, twill and other weaves to ensure the balance between strength and durability of the fabric.

Features

High strength: Made of high-strength polyester fibers and yarns, it ensures that the fabric can maintain stable performance in various environments.
Durability: PVC coating enhances the durability of the fabric, making it resistant to erosion by various external factors such as weathering, UV rays, chemicals, etc.
Waterproof and anti-fouling: PVC coating gives the fabric good waterproof and anti-fouling properties, making it easy to clean and maintain.
Rich colors: A variety of colors can be customized according to customer needs to meet the aesthetic needs of different projects.
Environmental protection: Both polyester fibers and PVC coatings can be recycled and reused, meeting environmental protection requirements.

Scope or scene

Construction field: It is suitable for membrane structure roofs, awnings, canopies, etc. for various construction projects, providing long-lasting protection and beautiful appearance.
Outdoor advertising: It can be used for outdoor billboards, display boards, etc., and withstand the test of various severe weather conditions.
Sports facilities: Roofs and sunshade facilities of sports facilities such as stadiums and swimming pools provide a comfortable environment for spectators and athletes.
Transportation: Awnings and tarpaulins can be used for ships, cars and other transportation vehicles to provide protection from the sun and rain.
