1200GSM 1300D30X32 Membrane Structure PVC Coated Polyester Fabric

1200GSM 1300D30X32 is the most common item in membrane structure industry. Colorful options make membrane structure with diversity instead of white membrane structure.

Technical Data Sheet

Properties	Units	Test method	Average value
Base Fabric Yarn	Denier		1300 x 1300D
Base Fabric Density	Thread/inch	FZ/T01003	30x32
Finished Fabric Weight	Gram/m2	FZ/T01003	1200±3%
Thickness	mm	FZ/T01003	0.95±3%
Tensile strength at MD	N/5cm	GB/T1040	5200
Tensile strength at CD	N/5cm	GB/T1040	5000
Tearing Strength at MD	N/5cm	GB/T16578	550
Tearing Strength at CD	N/5cm	GB/T16578	500
Peeling Strength	N/5cm	GB/T3917	100
Temperature range	℃		-50 ~ +70
Flame retardant			B1,B2,M1,M2, NFPA-701,C 19
Surface treatment			Acrylic, PVDF

PVC material is flame retardant (flame retardant value above 40), high chemical resistance (resistant to concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid and 20% sodium hydroxide), mechanical strength. And the advantages of good electrical insulation. With some chemical additives, making PVC material be of anti-UV, anti-mildew, anti-frost, anti-statistic, anti-bacterial, higher level frame retardant performance. And for health consideration, we can also make it meet RoHS, REACH, EN71-3 standards.

With PVC material advantages mentioned above, PVC fabric came into being.99.9％ polyester base fabric as reinforce of PVC material, making the fabric be of high performance of physical property to apply many fields in our industry and daily life.

1200 GSM 1300D30X32 Membrane Structure PVC Coated Polyester Fabric is a high-performance fabric for membrane structure buildings, usually used for the outer covering of buildings. This membrane structure fabric is made of polyester fiber base cloth coated with PVC (polyvinyl chloride). It is mainly used to make membrane structure buildings. Due to its excellent durability, strength and flexibility, it is widely used in various construction projects such as stadiums, exhibition halls, bus shelters and other structures that need to be sheltered and protected.

Main parameters and characteristics
GSM (grams per square meter): 1200 GSM means that the weight of the fabric per square meter is 1200 grams. This indicates that the fabric is very heavy and has high durability and strength.

D (denier): 1300D refers to the fiber diameter of the fabric, and 1300D indicates a very high fiber density, making the fabric stronger and more wear-resistant.

Fabric structure: 30X32 indicates the yarn density per inch, where 30 indicates the number of longitudinal (warp) yarns and 32 indicates the number of transverse (weft) yarns. This high-density fabric structure enhances its strength and stability.

Coating: The fabric is coated with a PVC layer, which provides excellent waterproof, UV and weather resistance.

Fire resistance: The material usually has a certain degree of fire resistance and can meet various construction and safety standards.

Tensile strength and tear strength: The high D value and thickness make the fabric not easy to tear when pulled by strong forces, and can withstand harsh weather conditions and strong winds.

Weather resistance: The PVC coating makes the fabric have good weather resistance, including UV resistance, rain resistance, and pollution resistance.

Application range and scenarios

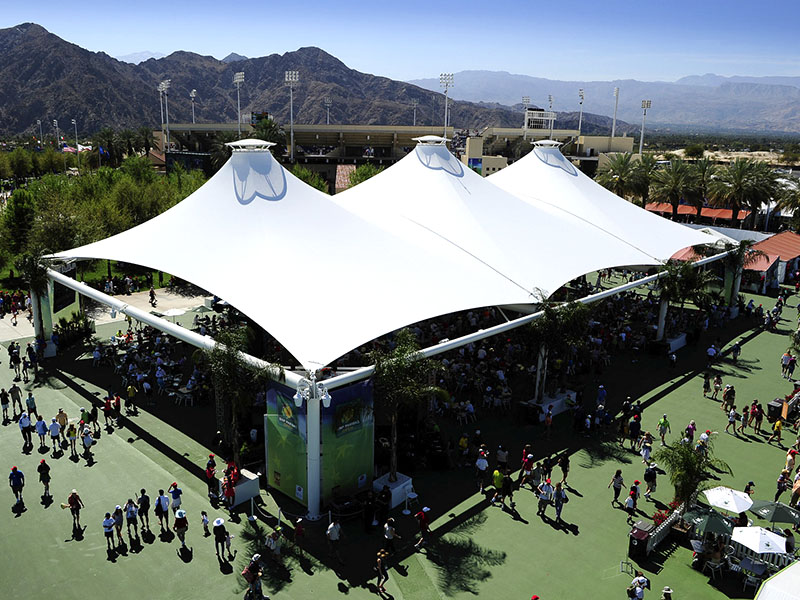

Membrane structure building:
Mainly used to make membrane structure buildings, such as stadiums, exhibition halls, conference centers and commercial buildings, which can provide large-span sheltered space.

Shading and sheltering:
Can be used to make large awnings, sunshades, etc. to provide shelter for outdoor activities.

Temporary buildings and tents:
Used to make emergency tents, temporary exhibition structures and other temporary buildings.

Urban facilities:
It can be used for bus shelters, overpasses, carports, etc. in the city to improve the functionality and aesthetics of urban facilities.

Decoration and art installations:
This material can also be seen in some art installations and decorative buildings because it can show unique shapes and color effects.
