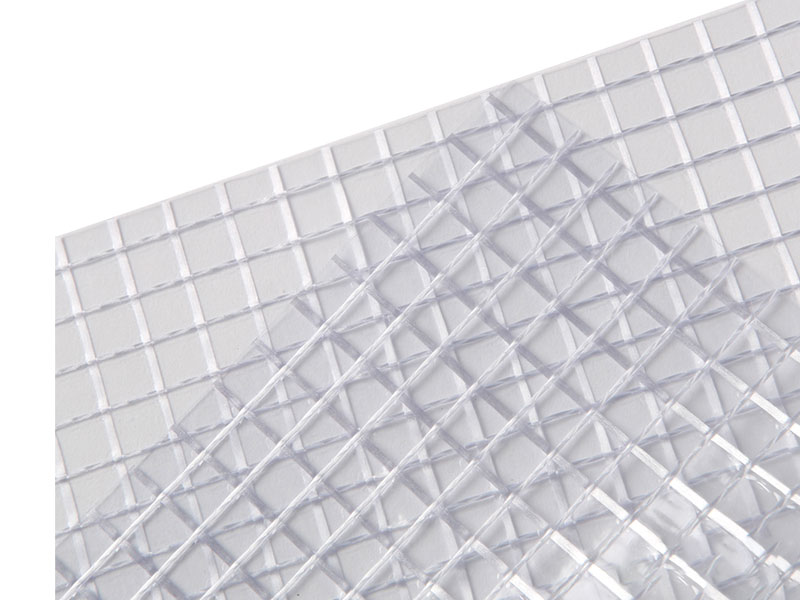

400GSM 1000D3X3 Ttransparent PVC Coated Polyester Fabric

Compared with super clear PVC film, PVC transparent fabric has stronger physical strength with reinforced base fabric. It's widely used to be windows of tent.

With PVC material advantages mentioned above, PVC fabric came into being.99.9％ polyester base fabric as reinforce of PVC material, making the fabric be of high performance of physical property to apply many fields in our industry and daily life.

Technical Data Sheet

Properties	Units	Test method	Average value
Base Fabric Yarn	Denier		1000D
Base Fabric Density	Thread/inch	FZ/T01003	3x3
Finished Fabric Weight	Gram/m2	FZ/T01003	400±3%
Thickness	mm	FZ/T01003	0.4±3%
Tensile strength at MD	N/5cm	GB/T1040	560
Tensile strength at CD	N/5cm	GB/T1040	470
Tearing Strength at MD	N/5cm	GB/T16578	60
Tearing Strength at CD	N/5cm	GB/T16578	65
Peeling Strength	N/5cm	GB/T3917	90
Temperature range	℃		-50 ~ +70
Anti-fungal			Optional
Anti UV			Optional
Frame Retardant			B2,M2

PVC material is flame retardant (flame retardant value above 40), high chemical resistance (resistant to concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid and 20% sodium hydroxide), mechanical strength. And the advantages of good electrical insulation. With some chemical additives, making PVC material be of anti-UV, anti-mildew, anti-frost, anti-statistic, anti-bacterial, higher level frame retardant performance. And for health consideration, we can also make it meet RoHS, REACH, EN71-3 standards.

400GSM 1000D3X3 Transparent PVC Coated Polyester Fabric is a multifunctional fabric that combines polyester fiber (Polyester) with transparent polyvinyl chloride (PVC) coating technology. Among them, GSM (grams per square meter) represents the weight of the fabric, that is, the weight per square meter is 400 grams, which shows the high density and excellent durability of the fabric. And 1000D3X3 represents the yarn density and weaving structure of the fabric, ensuring the firmness and stability of the fabric.

Product parameters and characteristics

Material: The fabric is based on 99.9％ polyester fiber and covered with a layer of transparent PVC coating on the surface. Polyester fiber is known for its high strength, wear resistance, weather resistance, wrinkle resistance and other properties, while the PVC coating enhances the waterproof, anti-fouling, and UV resistance of the fabric.
Physical properties: The weight of 400GSM ensures the high density and durability of the fabric, while the yarn density and weaving structure of 1000D3X3 provide excellent tensile strength and tear strength. In addition, the fabric also has excellent flame retardant properties (flame retardant value higher than 40), as well as high chemical resistance (can resist erosion by chemicals such as concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid and 20% sodium hydroxide).
Environmental protection and safety: In order to meet the environmental protection and safety standards of different countries and regions, the fabric can be produced in accordance with standards such as RoHS, REACH, EN71-3, etc. to ensure the safety and environmental protection of the product.
Transparency: The PVC coating is transparent, which maintains the original color and transparency of the polyester fiber, so that the fabric has a certain decorative effect while maintaining excellent physical properties.
Customizability: It can be customized according to customer needs, such as adjusting parameters such as color, size, thickness, etc. to meet the application requirements of different fields and scenarios.

Scope or scenario
Tent manufacturing: Because the fabric has good waterproof, anti-fouling, anti-ultraviolet and other properties, it is very suitable for the manufacture of windows and canopies of outdoor tents.
Packaging industry: The high strength, wear resistance, weather resistance and other characteristics of the fabric make it an ideal choice for the packaging industry, such as for the production of logistics packaging bags, cargo covering cloth, etc.
Construction: In the construction field, this fabric can be used as a covering material for building accessories such as awnings and rain canopies, providing long-lasting protection and decorative effects for buildings.
Advertising and exhibition industry: The transparency and customizability of this fabric make it an ideal choice for the advertising and exhibition industry, such as for making billboards, exhibition tents, etc.
