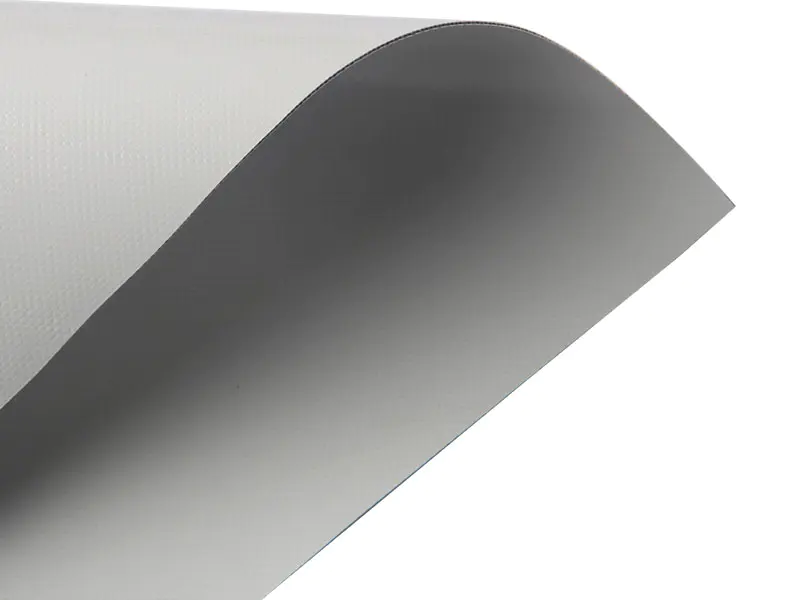

650GSM 1000D23X23 Royal Tent 99.9％ Block-Out Frame Retardant PVC Coated Polyester Fabric

650GSM 1000D 23X23 is an economical type as tent fabric. Compared with 850GSM 1000D 23X23 PVC coated fabric, it has similar physical strength. Light weight is also an advantage in some way for some applications.

Technical Data Sheet

Properties	Units	Test method	Average value
Base Fabric Yarn	Denier		1000 x 1000D
Base Fabric Density	Thread/inch	FZ/T01003	23x23
Finished Fabric Weight	Gram/m2	FZ/T01003	650±3%
Thickness	mm	FZ/T01003	0.5±3%
Tensile strength at MD	N/5cm	GB/T1040	3000
Tensile strength at CD	N/5cm	GB/T1040	2800
Tearing Strength at MD	N/5cm	GB/T16578	300
Tearing Strength at CD	N/5cm	GB/T16578	280
Peeling Strength	N/5cm	GB/T3917	80
Temperature range	℃		-50 ~ +70
Flame retardant			B1,B2,M1,M2, NFPA-701,C 19
Surface treatment			Acrylic, PVDF

PVC material is flame retardant (flame retardant value above 40), high chemical resistance (resistant to concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid and 20% sodium hydroxide), mechanical strength. And the advantages of good electrical insulation. With some chemical additives, making PVC material be of anti-UV, anti-mildew, anti-frost, anti-statistic, anti-bacterial, higher level frame retardant performance. And for health consideration, we can also make it meet RoHS, REACH, EN71-3 standards.

With PVC material advantages mentioned above, PVC fabric came into being.99.9％ polyester base fabric as reinforce of PVC material, making the fabric be of high performance of physical property to apply many fields in our industry and daily life.

650GSM 1000D 23X23 Royal Tent tent material, made of 99.9％ PVC coated polyester fiber, has excellent durability and protective performance. The material's 650GSM weight and 1000D strength ensure its wear resistance, while the 23X23 weaving density provides additional strength and stability. Its 99.9％ Block-Out feature completely blocks light and is suitable for environments that require absolute shelter. The flame retardant performance meets international safety standards, enhancing safety in use. In addition, the PVC coating provides excellent waterproofness and is suitable for various climate conditions. It is widely used in commercial tents, temporary buildings, agricultural covers, and film and television production.

Features:

650GSM (grams per square meter): This is a unit of measure for fabric density, indicating the weight of fabric per square meter. 650GSM usually indicates that the material is very thick and durable.
1000D (Denier): This is an indicator of the strength of the fabric. 1000D indicates the thickness of each fiber, and a relatively high value means stronger wear resistance.

23X23 weaving density: There are 23 warp yarns and 23 weft yarns per square inch, and the higher density increases the strength and durability of the fabric.
99.9％ Block-Out: The material can completely block light and is opaque, suitable for applications that require complete shielding.
Frame Retardant: The material has certain flame retardant properties, meets safety standards, and reduces the risk of fire.
PVC Coated: This coating provides additional waterproofness and weather resistance.

Industry Standards and Parameters
1. Fabric Density:
Fabrics with 650GSM are suitable for applications that require high durability and strength, such as large tents, awnings, etc.

2. Flame Retardant Standards:
Follow international flame retardant standards such as NFPA 701 (National Fire Protection Association) or BS 5438 (British Standard).

3. Waterproof Performance:
PVC coating makes the fabric extremely waterproof, usually with a water column pressure resistance of 1000mm or more.

4. Light transmission:
The 99.9％ Block-Out feature ensures that the material is light-proof and is suitable for scenes that require complete shielding, such as dark warehouses, image production, etc.

5. Temperature range:
PVC coated materials can usually be used in a temperature range of -30°C to 70°C, adapting to various climatic conditions.

Application scenarios
1. Commercial tents: used in markets, exhibitions, outdoor activities, etc., where strong shielding and durability are required.
2. Temporary buildings: suitable for temporary warehouses, workshops, etc., where waterproof and flame-retardant environments are required.
3. Agricultural field: used in greenhouses, agricultural covers, etc., where waterproofing and light isolation are required.
4. Film and television production: due to the complete light-shielding characteristics, it is suitable for use in studios and film and television shooting.
5. Leisure and entertainment facilities: such as camping tents, amusement park awnings, etc.
